Penukaran warna HSV ke RGB

Masukkan rona dalam darjah (°), tepu dan nilai (0..100%) dan tekan butang Tukar :

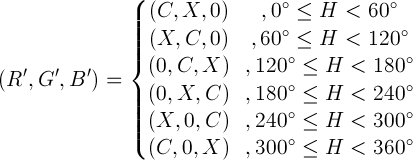

Formula penukaran HSV ke RGB

Apabila 0 ≤ H <360, 0 ≤ S ≤ 1 dan 0 ≤ V ≤ 1:

C = V × S

X = C × (1 - | ( H / 60 °) mod 2 - 1 |)

m = V - C

( R , G , B ) = (( R '+ m ) × 255, ( G ' + m ) × 255, ( B '+ m ) × 255)

Warna nama	(H, S, V)	Hex	(R, G, B)
Hitam	(0 °, 0%, 0%)	# 000000	(0,0,0)
Putih	(0 °, 0%, 100%)	#FFFFFF	(255,255,255)
Merah	(0 °, 100%, 100%)	# FF0000	(255,0,0)
Limau purut	(120 °, 100%, 100%)	# 00FF00	(0,255,0)
Biru	(240 °, 100%, 100%)	# 0000FF	(0,0,255)
Kuning	(60 °, 100%, 100%)	# FFFF00	(255,255,0)
Sian	(180 °, 100%, 100%)	# 00FFFF	(0,255,255)
Magenta	(300 °, 100%, 100%)	# FF00FF	(255,0,255)
Perak	(0 °, 0%, 75%)	#BFBFBF	(191,191,191)
Kelabu	(0 °, 0%, 50%)	# 808080	(128,128,128)
Maroon	(0 °, 100%, 50%)	# 800000	(128,0,0)
Zaitun	(60 °, 100%, 50%)	# 808000	(128,128,0)
Hijau	(120 °, 100%, 50%)	# 008000	(0,128,0)
Ungu	(300 °, 100%, 50%)	# 800080	(128,0,128)
Tekak	(180 °, 100%, 50%)	# 008080	(0,128,128)
Tentera Laut	(240 °, 100%, 50%)	# 000080	(0,0,128)
